6db Marine VHF Antenna Fiber Glass

Product Details

About This Item

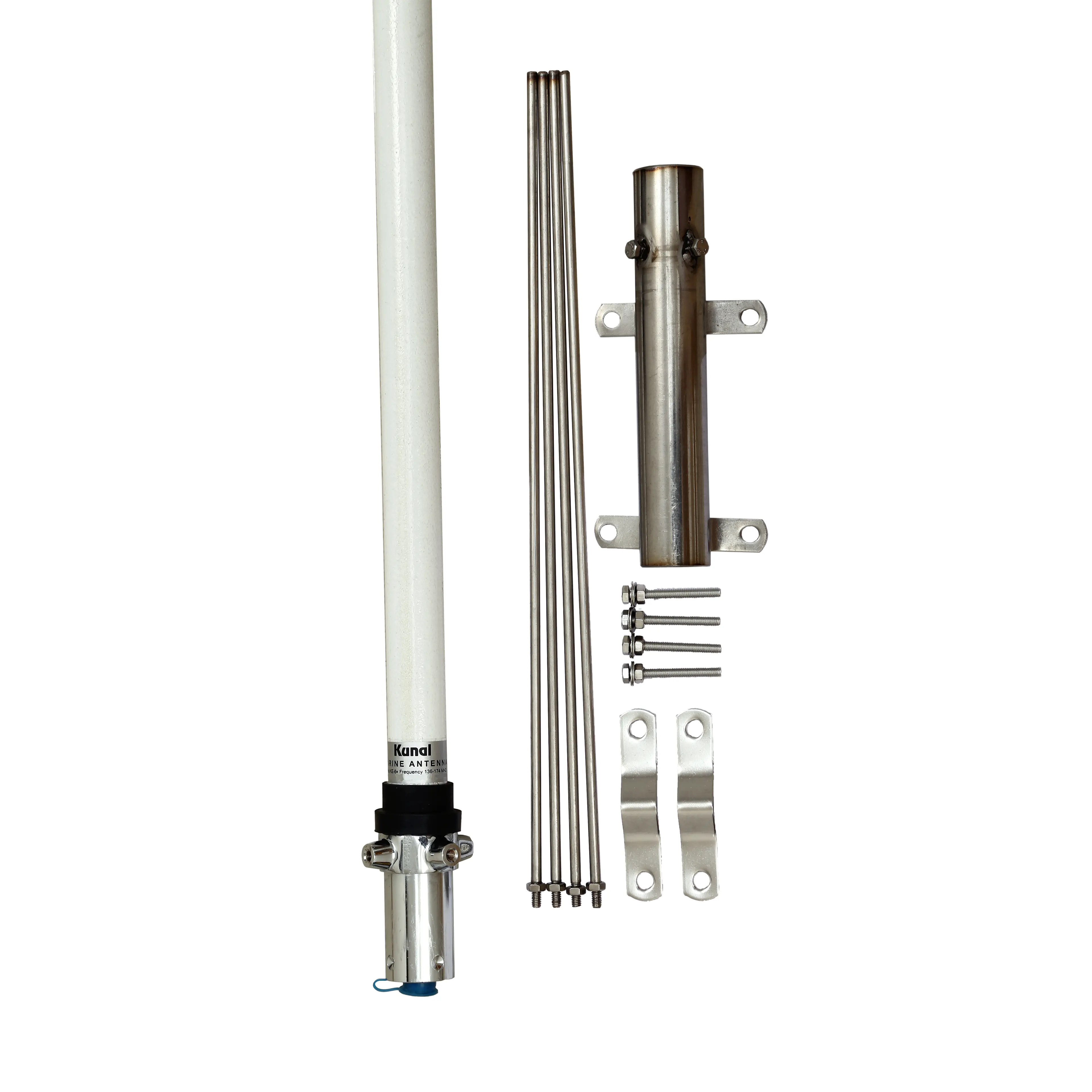

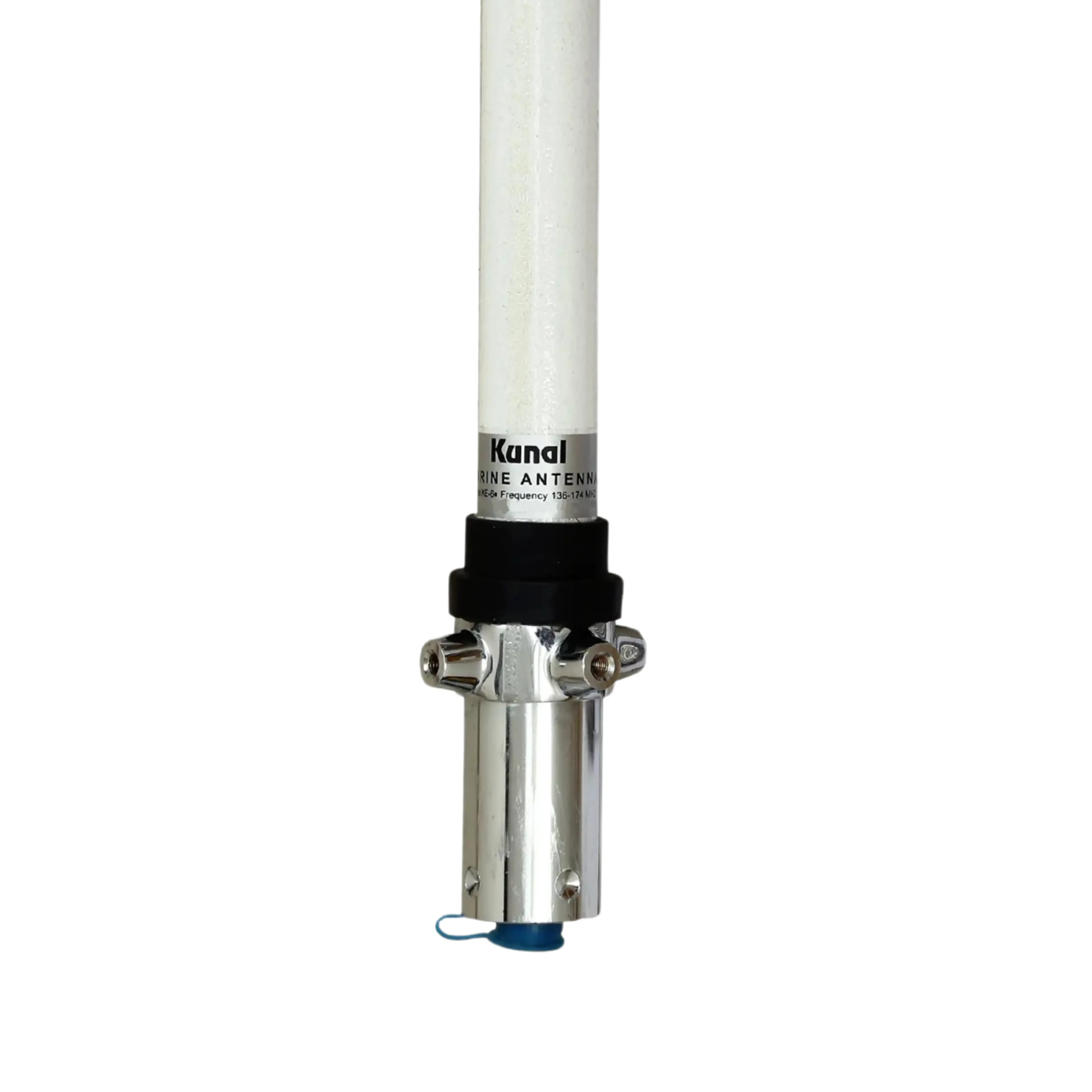

This 6dB Marine VHF antenna features an 8-feet whip constructed from durable brass and copper elements, designed to provide extended range and superior signal strength for marine communication.

Built for rugged conditions, the antenna features a fiberglass Material with PU-painted that protects against harsh weather, corrosion, and saltwater exposure.

Operating across a wide frequency range of 136 to 174 MHz with a bandwidth of 10 MHz

The antenna maintains a low VSWR of less than 1.5, ensuring efficient power transmission and minimal signal reflection.

With a gain of 6 dB and a full 360-degree omnidirectional radiation pattern, this antenna delivers consistent, reliable coverage in all directions.

Direct ground lightning protection enhances safety during storms, safeguarding your communication system. With a 50-ohm input impedance and the capacity to handle up to 100 watts of power.

Technical Datasheet Summary:

Technical Specification	Details
Frequency Range	136 – 174 MHz
Bandwidth	10 MHz
Gain	6 dB
VSWR	< 1.5
Radiation Pattern	Omnidirectional (360°)
Polarization	Vertical
Input Impedance	50 Ω
Connector Type	UHF
Maximum Power	100 Watts
Lightning Protection	Direct Ground
Material	PU-painted fiberglass, Copper, and chrome plated solid brass
Mounting Mast Diameter	32 – 60mm
Mounting Mast Material	Nylon (durable, corrosion-resistant)
Max Wind Velocity	200 Kms/hr
Antenna Length	8 feet

PLACE YOUR ORDER VIA WHATSAPP OR CALL (MINIMUM ORDER QTY: 10)
